• ICM8 — inside corner moulding
  • OCM8 — outside corner moulding
  • QRM8 — quarter round moulding
  • SM8-S — scribe moulding
  • SM8-D — 96″ length, 1½″ height, ¼″ thickness
1 5

zlite-wood-kitchen-cabinets

Moulding Trims

Moulding Trims

Color
Width / Length
Style

Product Code:

Solid wood moulding trims in inside corner, outside corner, quarter round and two scribe styles. All are 96″ long.

Product Sizes

Dimensions are shown in inches. Use these product codes when requesting a quote.

Product Code Style Length Profile Dimensions Details

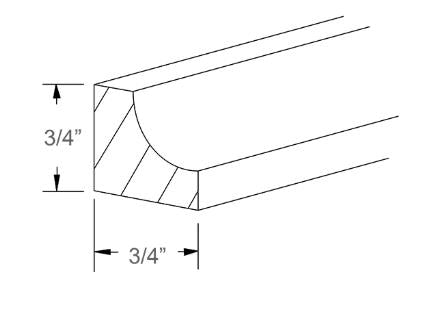

ICM8 Inside Corner Moulding 96″ ¾″ × ¾″ Inside corner profile

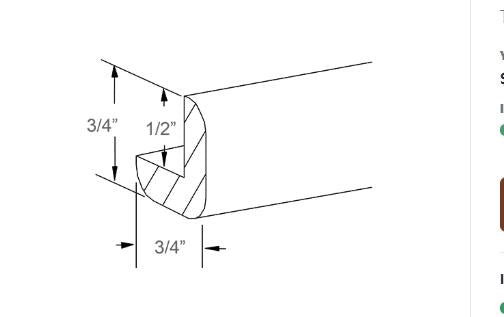

OCM8 Outside Corner Moulding 96″ ¾″ × ¾″ overall ½″ inside opening height

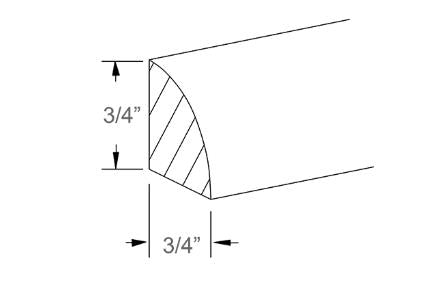

QRM8 Quarter Round Moulding 96″ ¾″ × ¾″ Quarter-round profile

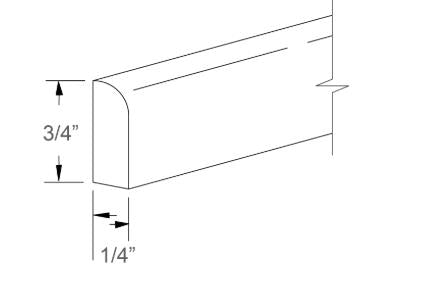

SM8-S Scribe Moulding S 96″ ¾″ high × ¼″ thick Scribe profile S

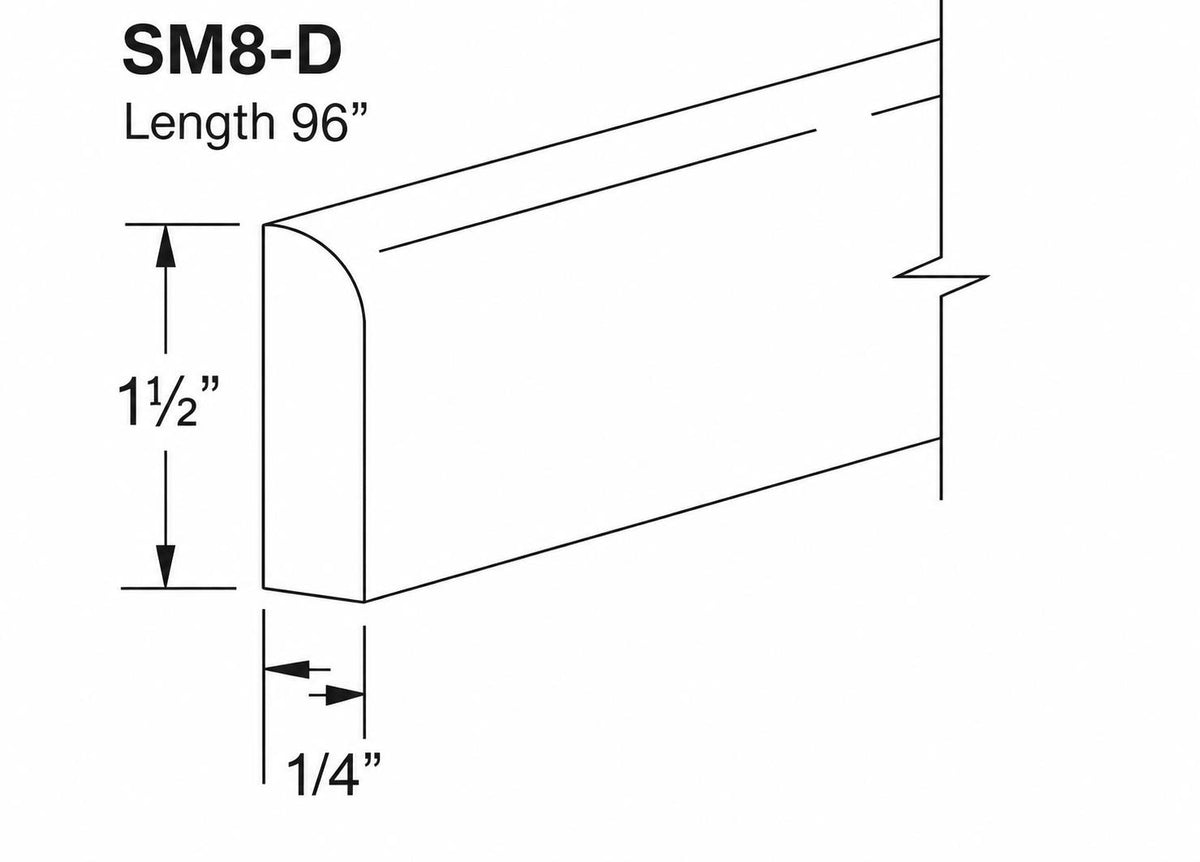

SM8-D Scribe Moulding D 96″ 1.5″ high × ¼″ thick Scribe profile D

Specifications

Configuration

  • All trims: 96″ length
  • ICM8 and QRM8: ¾″ × ¾″ profile
  • OCM8: ¾″ × ¾″ overall profile with ½″ inside opening height
  • SM8-S: ¾″ face height × ¼″ thickness
  • SM8-D: 1.5″ face height × ¼″ thickness

Material and Finish

  • Solid wood
  • Painted or stained finish to match the selected cabinet colour
  • All styles available in all six cabinet finishes

Ready to Design Your Kitchen?

Choose your colour and moulding style, then include the product code in your quote request.
